Product Info
Description

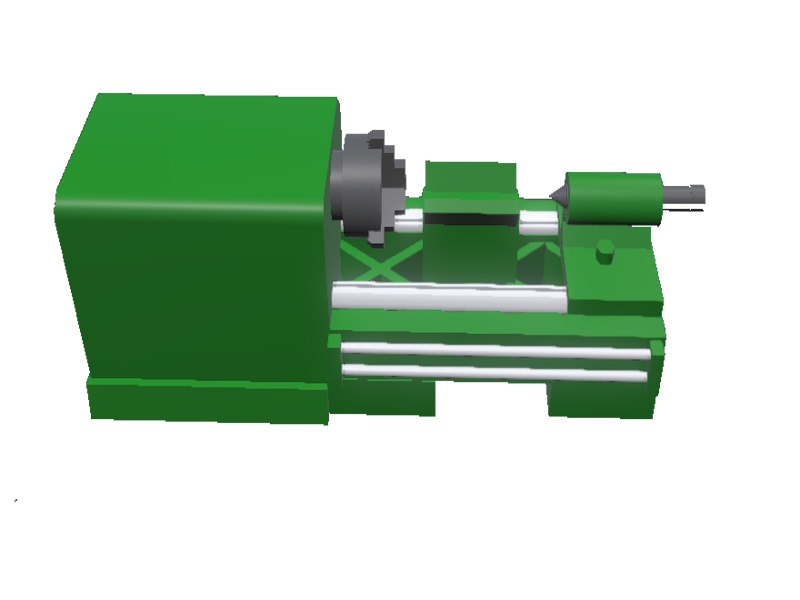

Grinding machine to simulate the machining of a WorkPart.
Uses two digital inputs and outputs.
Digital Outputs:
– Close Point: to open/close clamp device
-Start Work; starts the machinin process, rotating the workpiece to simulate the grinding cycle.
Digital Inputs:
-Point Closed: to inform the status of the campling device.
-End Work: active when me grinding process has finised.
Includes
Grinding Machine UDC
Installing Instruction
1. Download the file.
2. Unzip it.
3. Copy the files in your Machines Simulator 4 -> UserDefinedComponents -> MachineTool
(By default C:NirtecMachines Simulator 4 -> UserDefinedComponents -> MachineTool)
Dependences
None
Grinding Machine
Grinding Machine UDC
0,00 €
MS Minimun Required Version: v4.4
