Product Info
Description

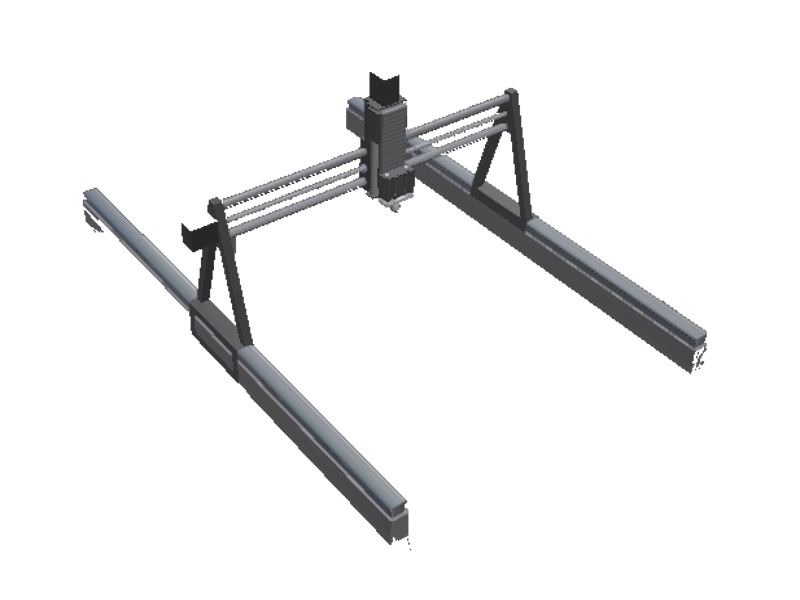

Three-axis gantry with suction system.
Use the following signals to operate it:
– 5 Digital Outputs: to move in X, Y and Z, activate suction and move up & down the tool cylinder.
-3 Digital Inputs: for cylinder up & down readinf position and part detection.
-3 Analog Outputs to move X, Y and Z axis.
-3 Analog Inputs to read X, Y and Z axis current position.
Includes
Three Axis Gantry UDC
Installing Instruction
1. Download the file.
2. Unzip it.
3. Copy the files in your Machines Simulator 4 -> UserDefinedComponents -> Gantry
(By default C:NirtecMachines Simulator 4 -> UserDefinedComponents -> Gantry)
Dependences
None
Three Axis Gantry
Three Axis Gantry UDC
0,00 €
MS Minimun Required Version: v4.4
